RSNet (Recurrent Slice Networks)

Problem with other semantic segmentation networks

Not modelling required dependencies between cloud points.

Key component in RSNet

lightweight local dependency module

The local dependency module is highly efficient and has the time complexity of the slice pooling/unpooling layer as \(O(n)\) w.r.t the number of input points and \(O(1)\) w.r.t the local context resolutions.

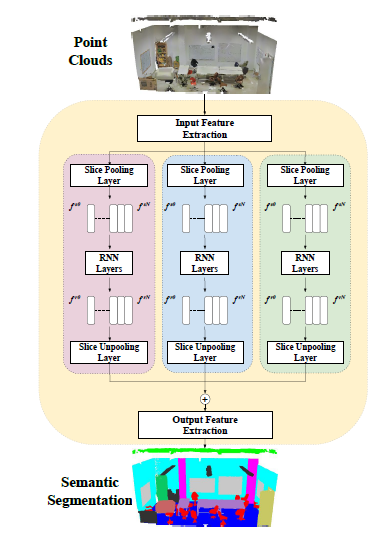

RSNet Components

• Input feature extraction block

  input points \(\rightarrow\) features

• Local dependency module

  Combination of
  • Slice pooling layer
  • Bidirectional Recurrent Neural Network (RNN) layers
  • Slice unpooling layer

local context problem is solved by first projecting unordered points into ordered features and then applying traditional end-to-end learning algorithms

The projection is achieved by a novel slice pooling layer

1. Slice pooling layer

   input: features of unordered points \(\rightarrow\) output: ordered sequence of aggregated features

2. RNN layers

   Next, RNNs are applied to model dependencies in this sequence.

3. Slice unpooling layer

   Finally, a slice unpooling layer assigns features in the sequence back to points.

• Output feature extraction block

  processed features \(\rightarrow\) final predictions for each point

Note: Both input and output blocks use a sequence of multiple \(1 \times 1\) convolutional layers to produce independent feature representations for each point.
